جزئیات محصول
محل منبع: چین
نام تجاری: ENWEI
گواهی: CE
شماره مدل: مدل 3190
سند: 3190 solar camera trailer.pdf
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: 1
جزئیات بسته بندی: یک 20 گرم می تواند 4 واحد را بارگیری کند ، یک 40HQ می تواند 8 واحد را بارگیری کند
زمان تحویل: طی 30 روز
شرایط پرداخت: t/t
قابلیت ارائه: 200 واحد در ماه
تابلوهای خورشیدی: |
3*400W |
باتری: |
4*200ah ، dc12v |
دکل: |
6 متر، بالابر دستی |
کنترل کننده: |
MPPT 60A |
اینور: |
1000W ، موج سین خالص ، خروجی AC 220 ولت |
پاهای پشتیبانی: |
4 عدد |
کابل ها: |
CAT6 و کابل برق |
لاستیک: |
R14 |
دمای کار: |
-35 تا 60 درجه سانتیگراد |
نورپردازی تریلر: |
مجهز به توابع ترمز ، معکوس و فرمان است |
تابلوهای خورشیدی: |
3*400W |
باتری: |
4*200ah ، dc12v |
دکل: |
6 متر، بالابر دستی |
کنترل کننده: |
MPPT 60A |
اینور: |
1000W ، موج سین خالص ، خروجی AC 220 ولت |
پاهای پشتیبانی: |
4 عدد |
کابل ها: |
CAT6 و کابل برق |
لاستیک: |
R14 |
دمای کار: |
-35 تا 60 درجه سانتیگراد |
نورپردازی تریلر: |
مجهز به توابع ترمز ، معکوس و فرمان است |

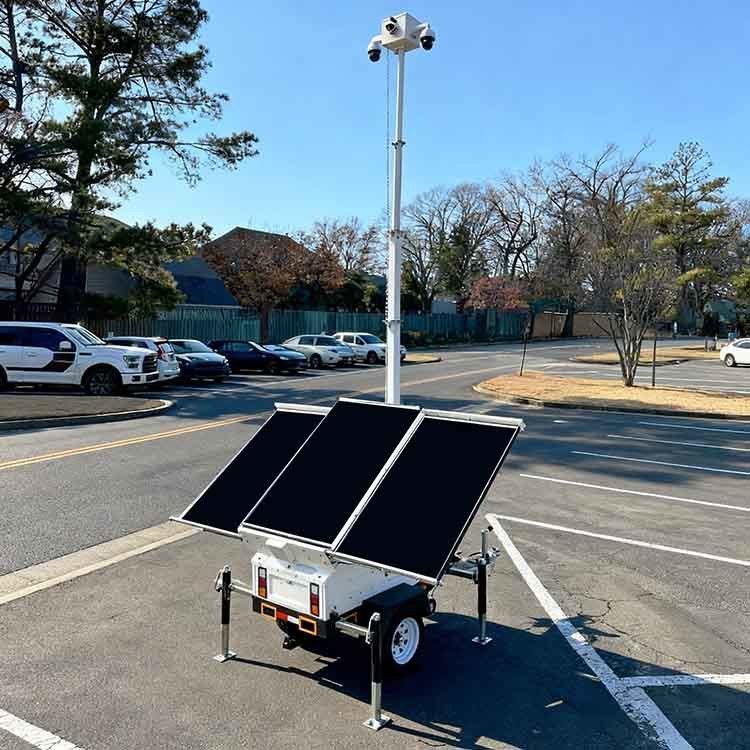

Solar-Powered Surveillance Trailer for Construction Site Security Monitoring
1. Ultimate convenience, rapid deployment.
2. Off-grid operation, green and environmental protection.
3. Remote real-time management: Through 4G/5G wireless networks, managers can remotely view the screen in real time on their computers or mobile phone apps.
4. The material of the cold-galvanized steel plate trailer body is powder coating on the surface, which has excellent anti-corrosion effect and is suitable for working in various environments.
Applications:
1. Remote area project: For remote construction sites with weak infrastructure, this solution is the only feasible and efficient monitoring method.
2. Monitor the progress of the project.
3. Monitor the main entrances and exits, material warehouses, living areas, etc., and record the entry and exit of people and vehicles.
4. Military patrols, border security.
Specification of Solar-Powered Surveillance Trailer:
Solar panels | 3*400W |
Batteries | 4*200Ah, 12V |
Mast | 6m, manual lifting |
Controller | 60A MPPT |
Inverter |
1000W, pure sine wave |
Size | 1850*1350*2150mm |
Weight | about 1000kg |
